Level 5 – Superlite Big Brake Kit 11.75" Rotors (Brackets only)

This is the biggest front brake kit we offer — and for good reason. It’s the most popular big brake setup among serious Miata racers. At the heart of the kit is the Wilwood Superlite caliper, paired with our engineered billet aluminum hatsand massive 11.75" rotors to deliver consistent, powerful stopping performance, lap after lap.

It uses the common 7420 pad shape, which is available in a wide variety of compounds from numerous manufacturers. That means you’ll always have options to fine-tune your setup for track, autocross, or street use.

This is the exact front brake setup we run on our own endurance race cars — tested and proven in the harshest conditions. For endurance racing, we use EBC DP8037/2.20SR11 pads because they offer long pad life with consistent performance.

Dual-Mount Rotor Hats for Front & Rear Compatibility

The billet aluminum rotor hats in this kit feature dual mounting points, allowing them to be swapped front-to-rear when paired with our Superlite Rear Brake Kit. We engineered both kits to minimize the number of spareswe need to bring to the track. It's incredibly convenient to run the same rotors and pads on both ends of the car.

What’s Included:

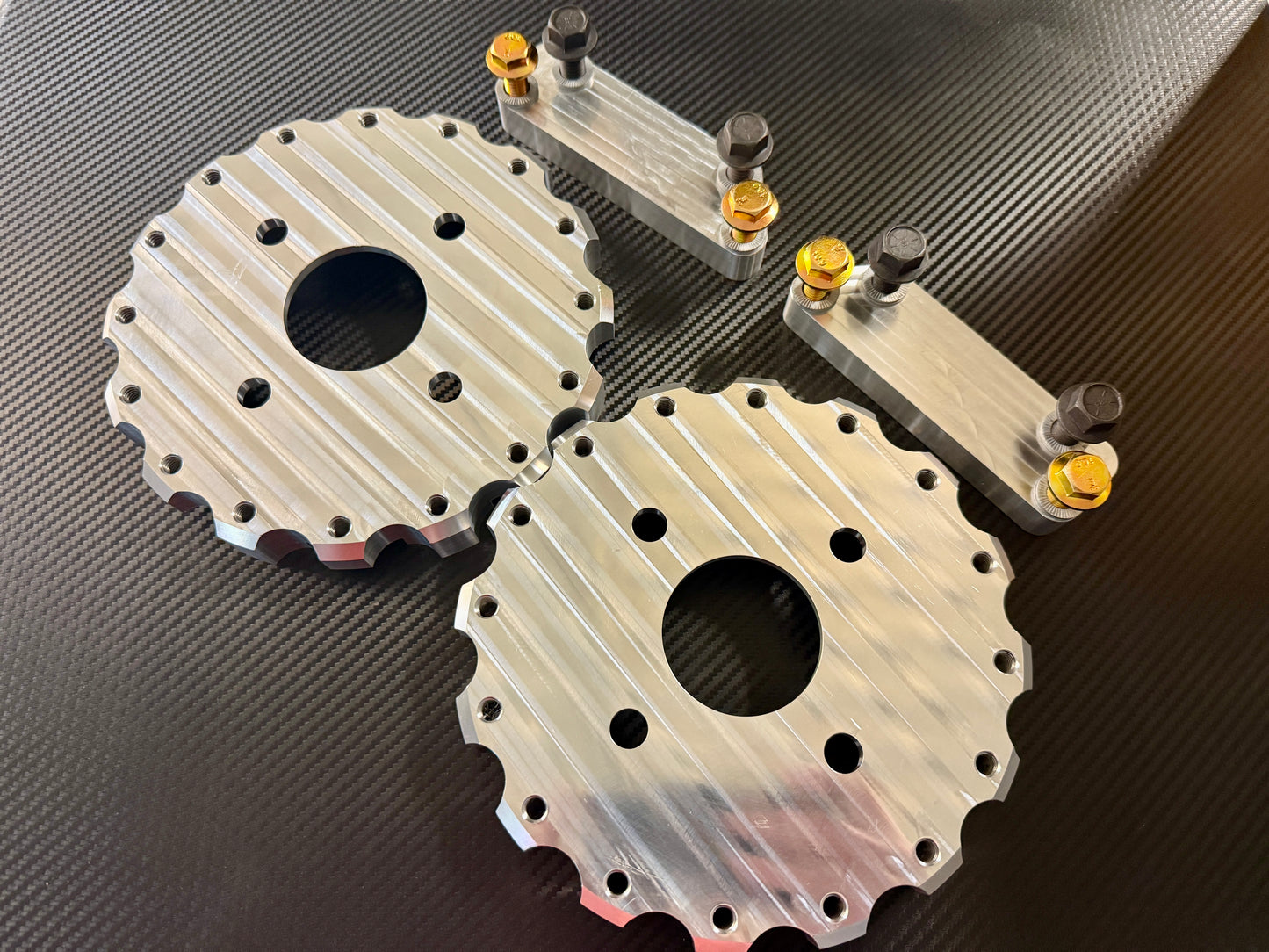

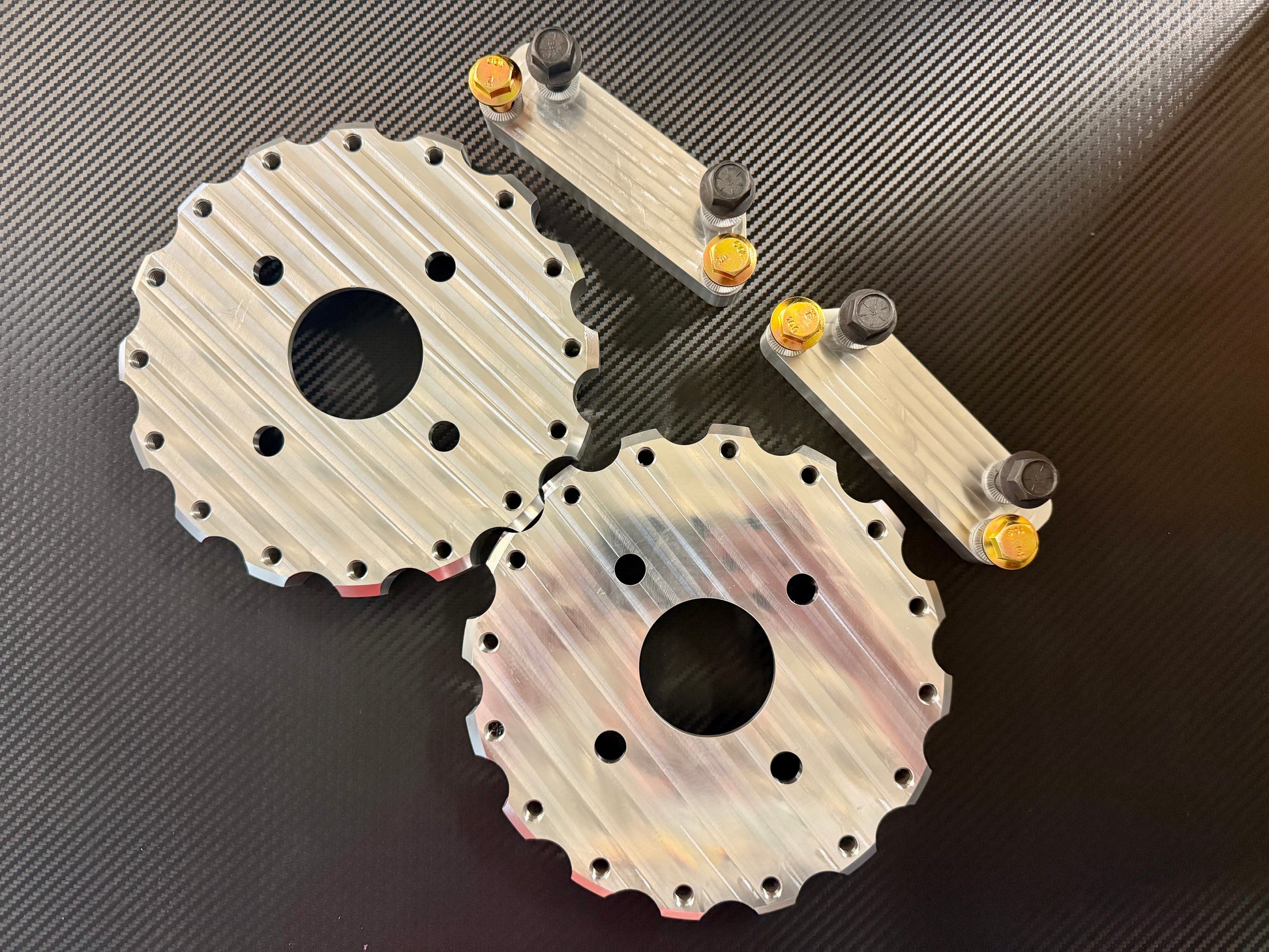

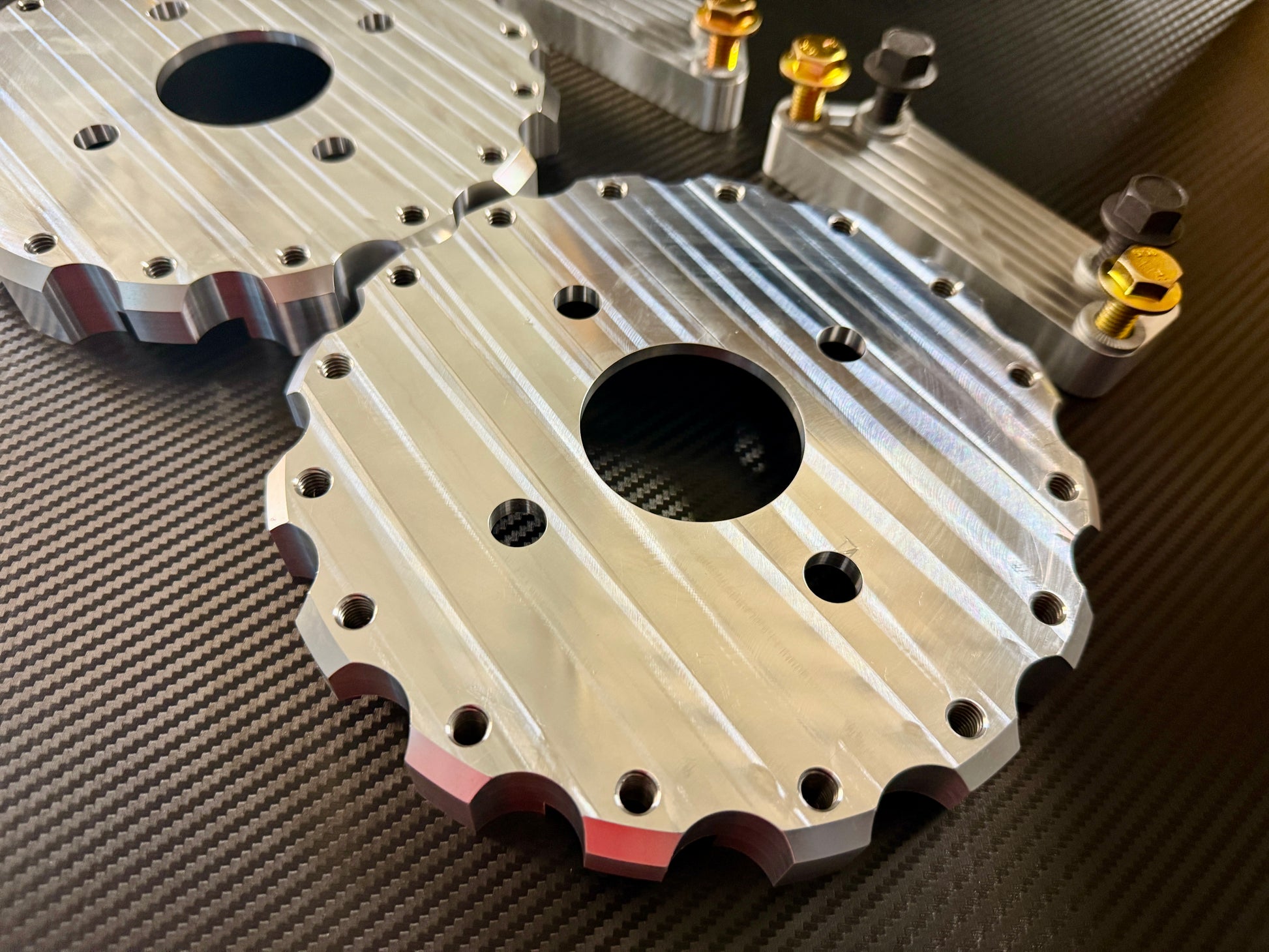

• Beyond Motorsports billet caliper mounting brackets and dual purpose billet hats


• hardware mounting kit

What You’ll Need:

• Brake Pads:
  We don’t include pads in this kit because everyone has their own use case and compound preference. We’re authorized dealers for EBC and Wilwood — check out our brake pad page for all the options we offer.

• Brake Fluid:
  Just like pads, brake fluid comes down to personal preference.

• Wilwood Superlite calipers (4-piston forged aluminum) p/n: 120-11128

• 11.75" vented rotors p/n: WIL160-0471

• 14" ss 3an brake lines with adapters to wilwood caliper and factory linesp/n: WIL220-6956,ALL46300-14,FRA-650202,

• rotor hardware and safety wire p/n: WIL230-0233D

Wheel Fitment Guide

Due to the size of this big brake kit, wheel clearance can be an issue. Below are the wheels we’ve tested:

• Advanti

  • Advanti Storm 15x8 – 10mm spacer required

  • Advanti Storm 15x9 – 10mm spacer required

  Jongbloed

  • Jongbloed 15x9 – 5mm spacer required

  • Jongbloed 15x10 – No spacer required

  Konig

  • Konig Countergram 15x8 – 8mm spacer required

  • Konig Deka 15x9 – 8mm spacer required

  • Konig Deka 15x10 – No spacer required

  • Konig Freeform 15x9.5 – No spacer required
