Level 5 – Superlite Big Brake Kit 11.75" Rotors

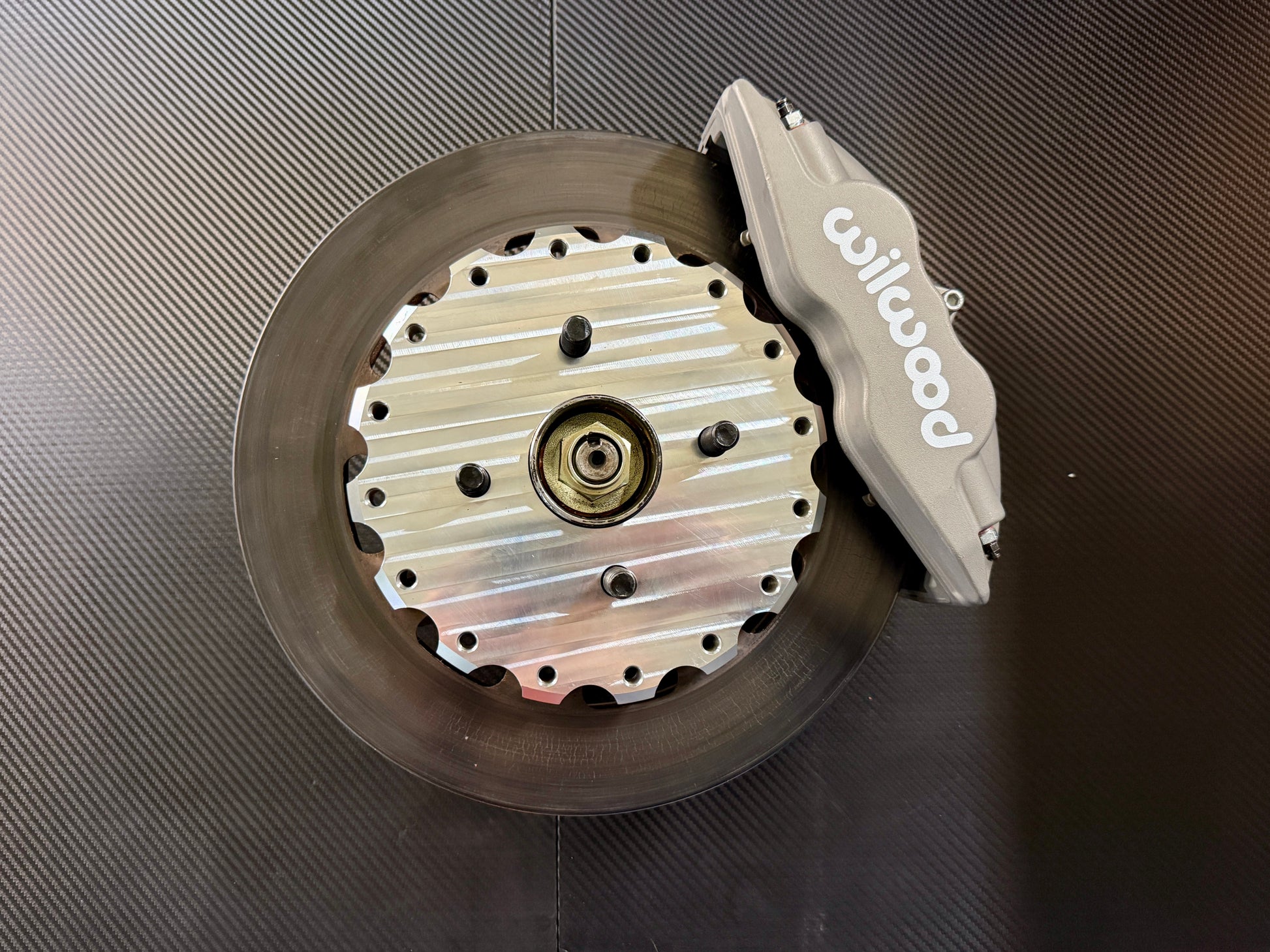

This is our top-tier front brake kit — the same one we run on our own endurance Miatas. Wilwood Superlite calipers, big 11.75” rotors, and our billet aluminum hats. If you want consistent, powerful braking lap after lap, this is it.

It uses the common 7420 pad shape (tons of options available), and we engineered the rotor hats with dual mounting positions so you can swap them front-to-rear when running our matching Superlite rear kit. Less spares, more simplicity.

Where It Shines:

• Endurance Racing: Built for 24-hour racing. We run EBC DP8037/2.20SR11 pads on our own cars.

• Sprint Racing: Fade-resistant, strong, and consistent — the whole package.

• Street/Track Builds: It’s overkill for the street, but if you want race car brakes, here you go.  ANY HP, this is the biggest brake package you can get!

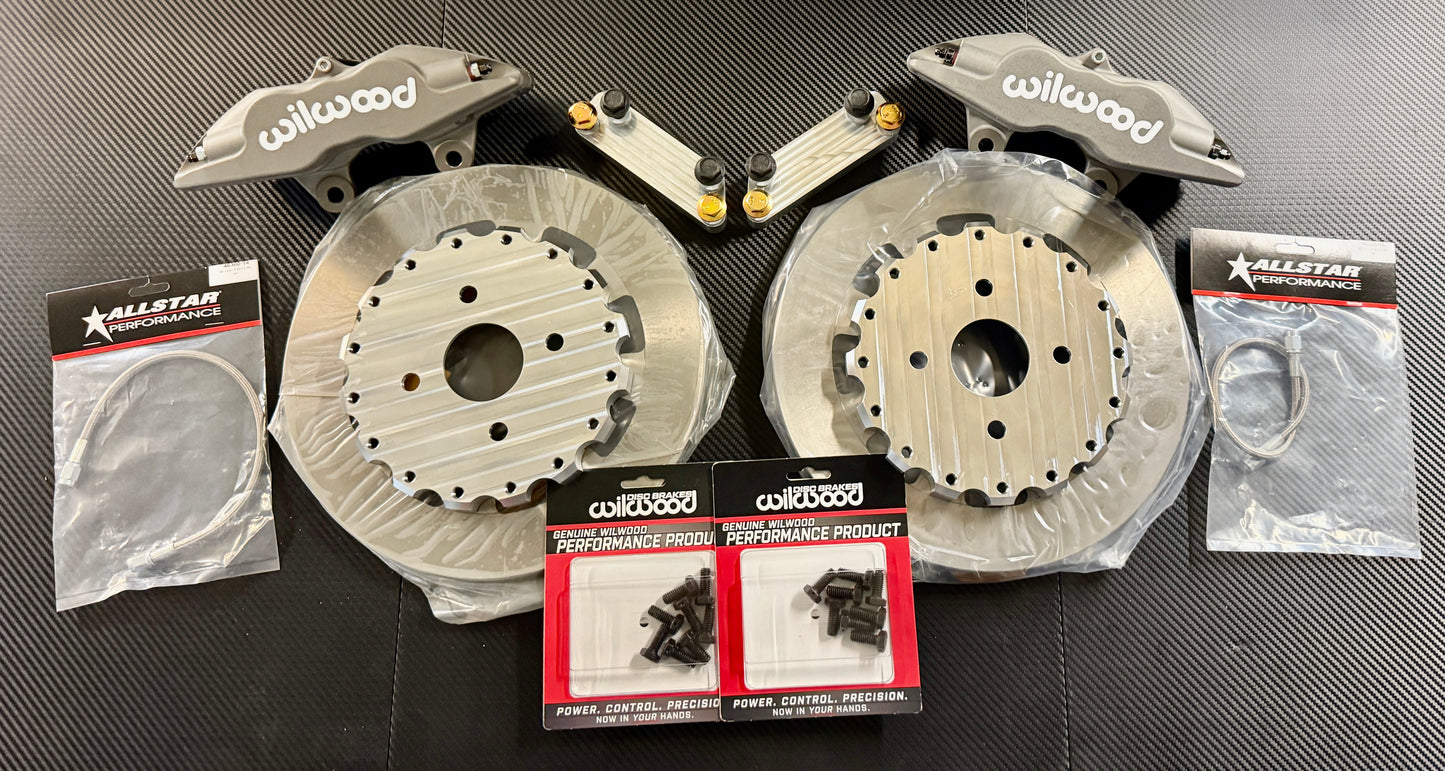

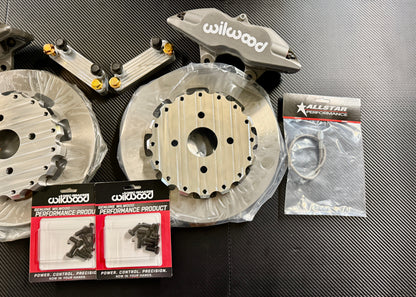

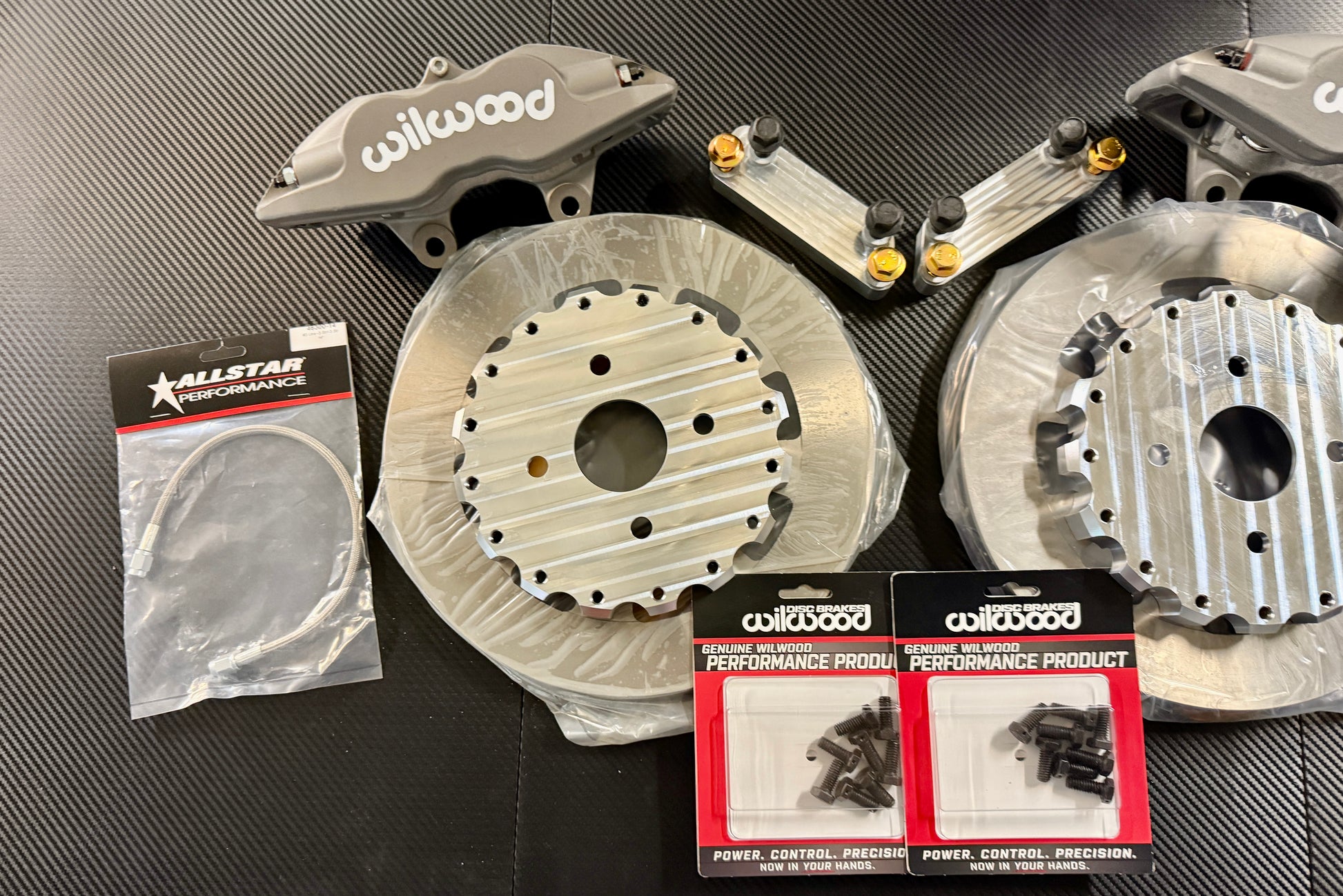

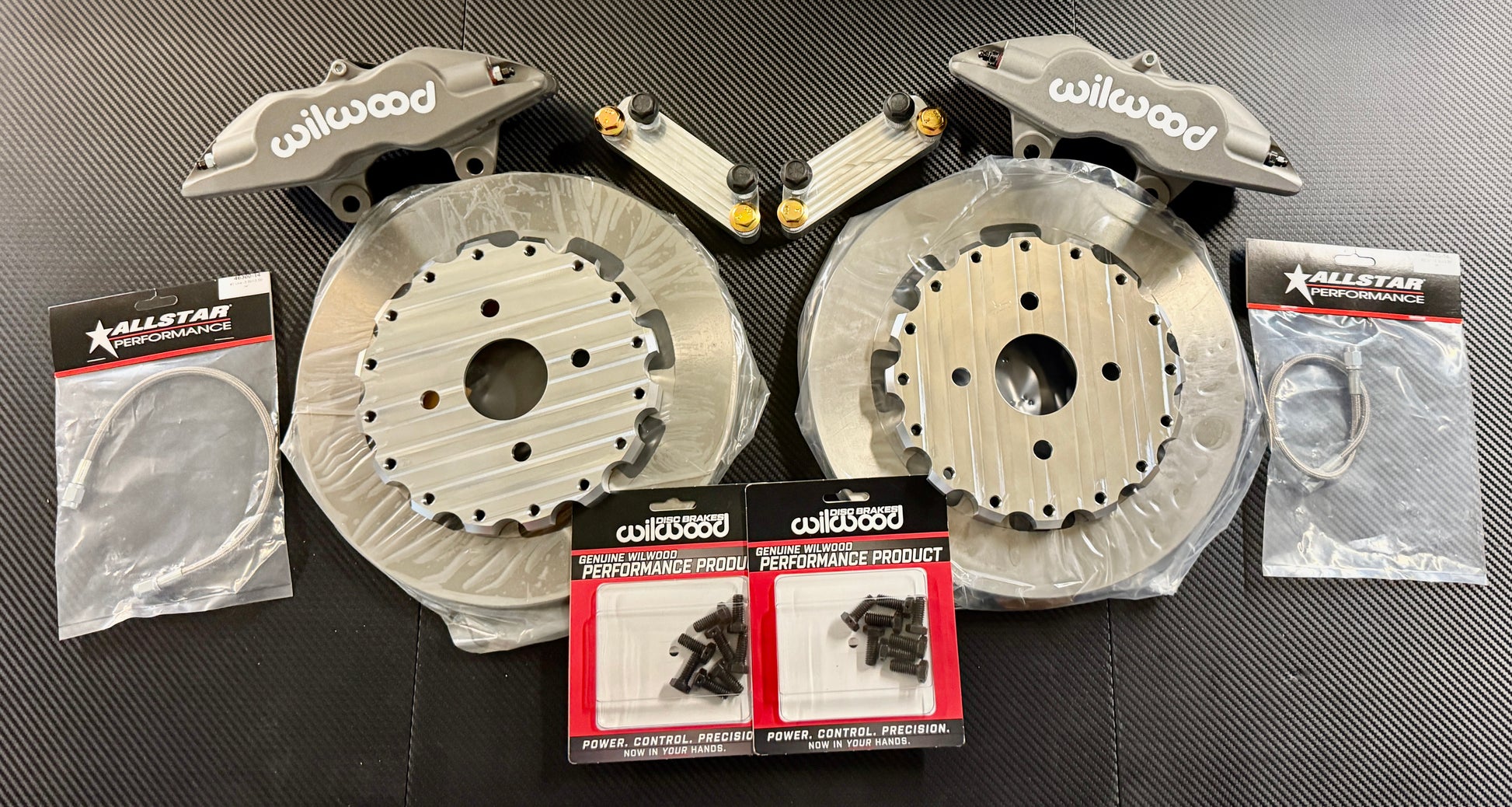

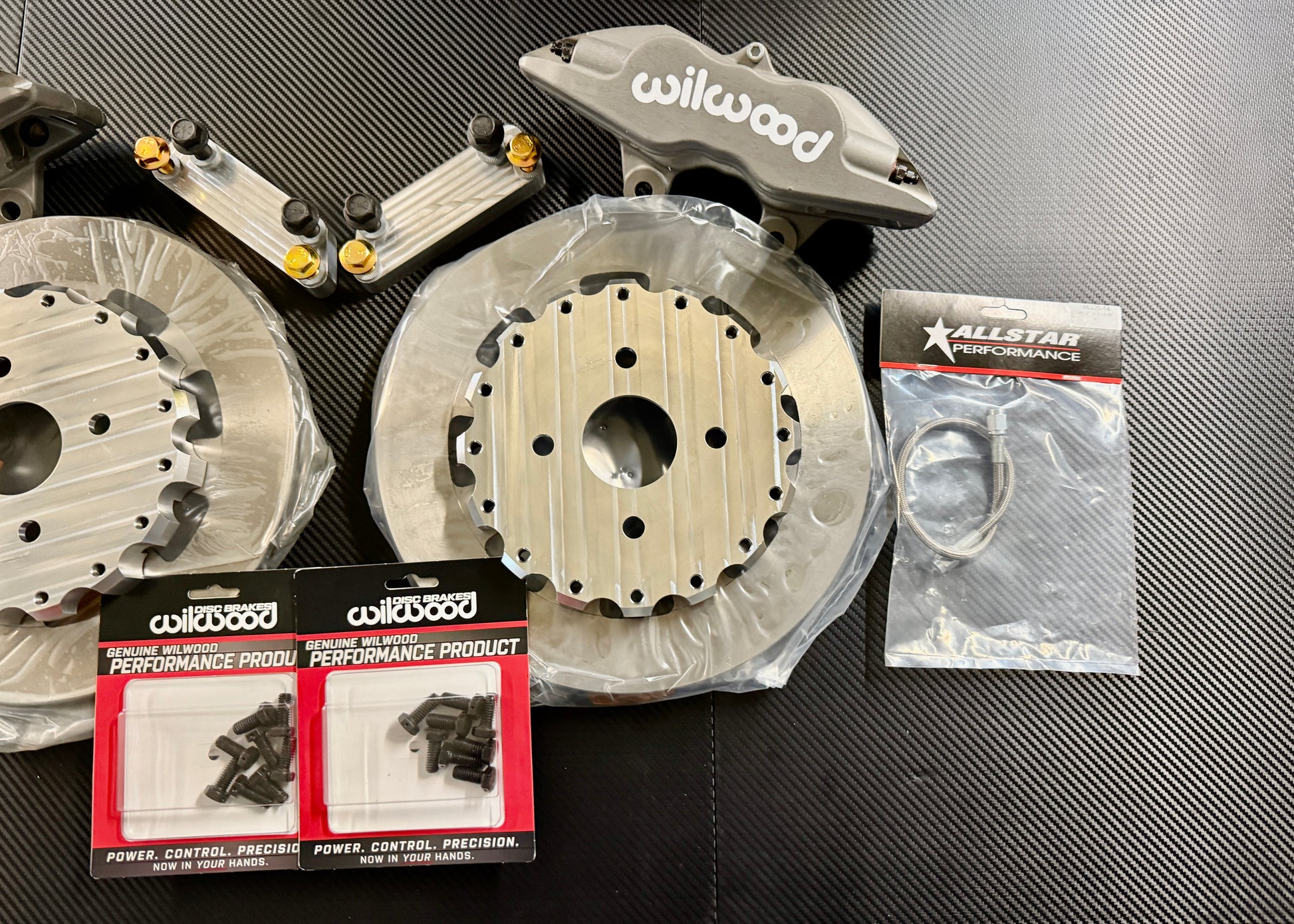

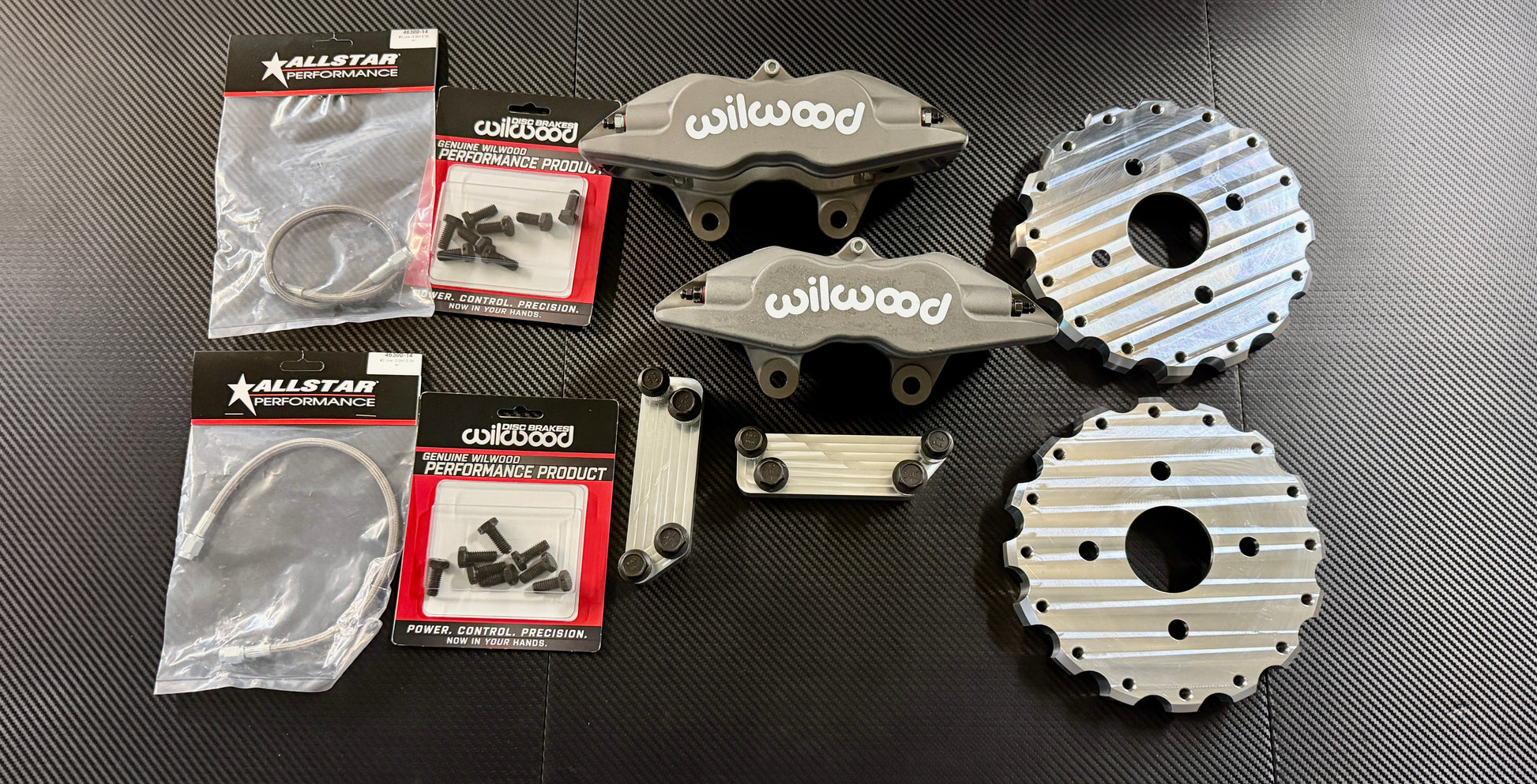

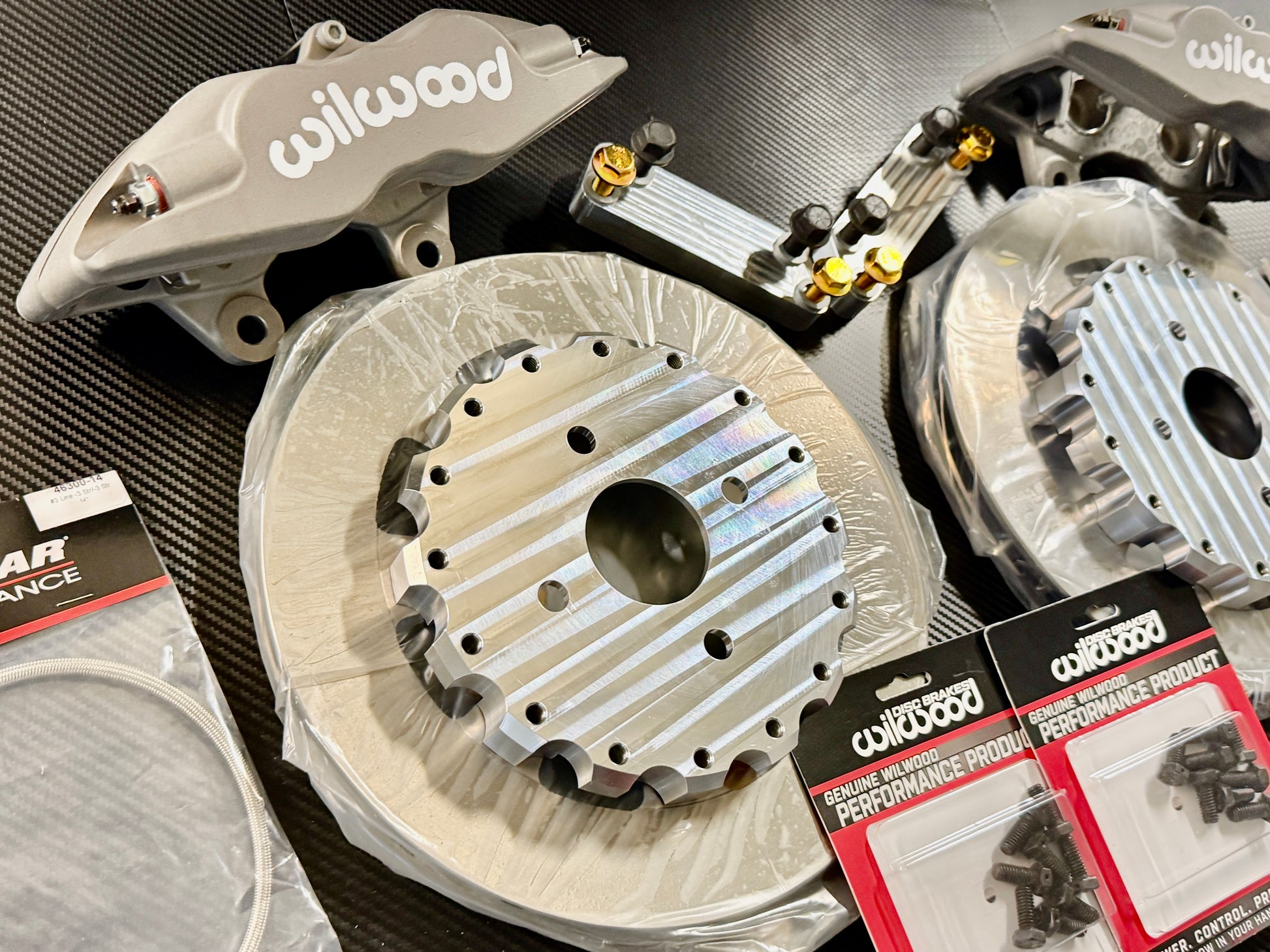

What’s Included:

• 2 x Wilwood Superlite 4-Piston Calipers

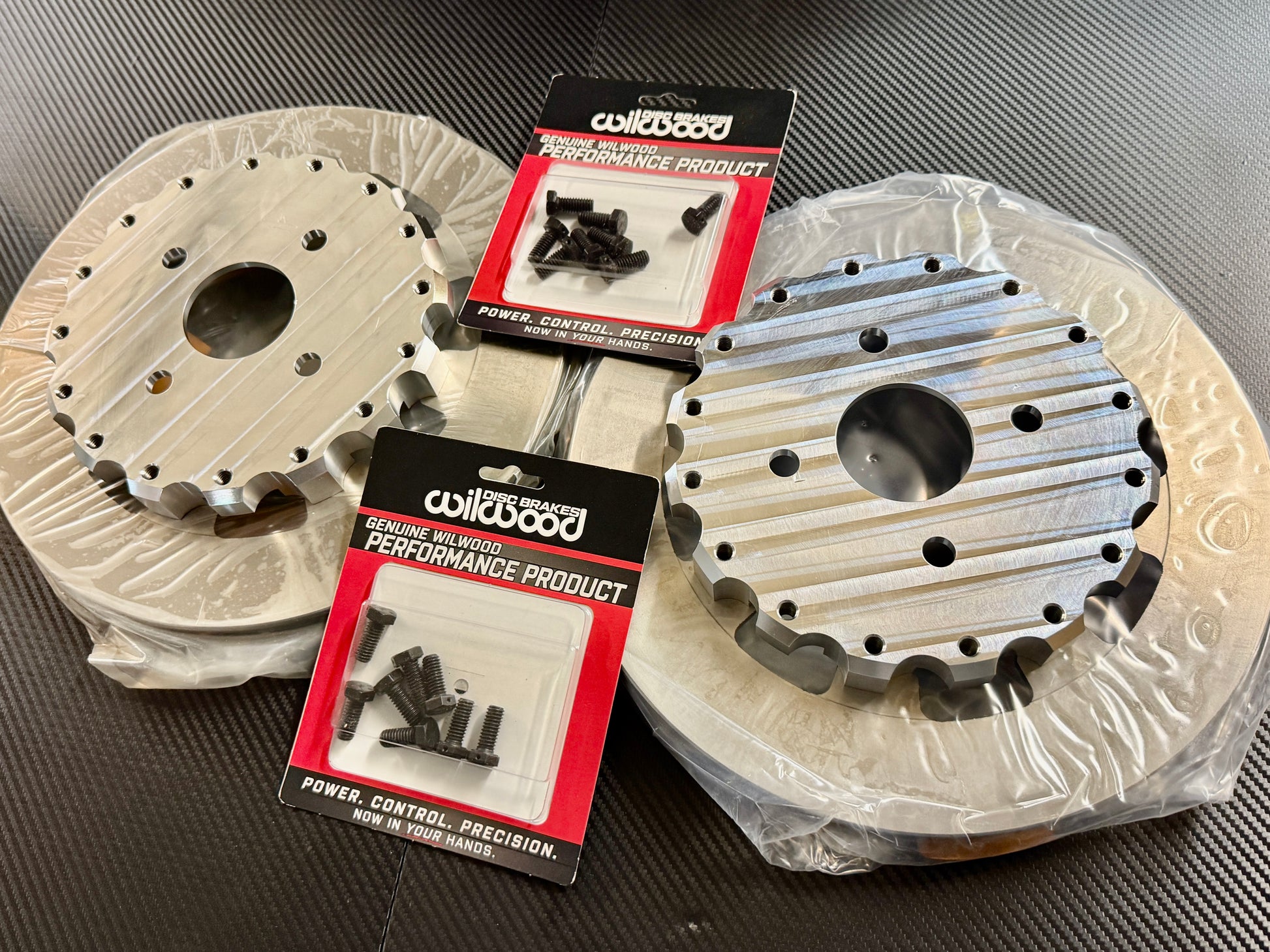

• 2 x 11.75” Vented Rotors w/ Beyond Motorsports Billet Hats

• Rotor Mounting Hardware

• 2 x Billet Caliper Brackets

• 2 x Stainless Braided Brake Lines

• Full Hardware Kit (everything you need to bolt it on)

All brackets and spacers are made from high-strength 7075-T6 aluminum with stainless steel threaded inserts and anodized to prevent corrosion. We also include high-strength black oxide coated hardware with every kit.

What You’ll Need:
Brake Pads / Rotors / Brake Fluid
We no longer include pads, rotors, or fluid in our kits — everyone’s got their own preference depending on how they drive. We’re authorized dealers for EBC and Wilwood, so check out our pad and fluid sections for options.
Got questions? Shoot me an email at Kyle@beyondmotorsports.com. With over 50 years of combined track experience between us, I’m confident we’ll get you set up right for your next track day.

Wheel Fitment Guide

Due to the size of this big brake kit, wheel clearance can be an issue. Below are the wheels we’ve tested:

• Advanti

• Advanti Storm 15x8 – 10mm spacer required

• Advanti Storm 15x9 – 10mm spacer required

• Jongbloed

• Jongbloed 15x9 – 5mm spacer required

• Jongbloed 15x10 – No spacer required

• Konig

• Konig Countergram 15x8 – 8mm spacer required

• Konig Deka 15x9 – 8mm spacer required

• Konig Deka 15x10 – No spacer required

• Konig Freeform 15x9.5 – No spacer required
