This isn’t just a product we sell—it’s the same rear brake kit we trust on our own endurance race Miata. Tested and refined through countless hours of racing, this setup has proven its reliability, performance, and longevity on the track. Whether it’s enduring the grueling demands of a 12- or 24-hour races. We’ve designed this system to minimize consumable costs while maximizing performance, ensuring you get the most out of your investment—just like we do.
Upgrade your Miata’s braking system with precision-engineered brackets and 6061-T6 aluminum rotor hats designed for serious performance and durability. These components alow you to mount Superlite 120-11125 Calipers on the rear of your miata.
Lightweight and Versatile
While engineered for performance, the lightweight design of the hats and brackets ensures your car maintains optimal balance and agility, even with larger brake dimensions.
What’s Included
6061-T6 Aluminum Rotor Hat:
Custom-designed with scalloped edges for weight savings.
Staggered mounting bosses enable seamless cross-compatibility between the BroFab front kit and our rear kit.

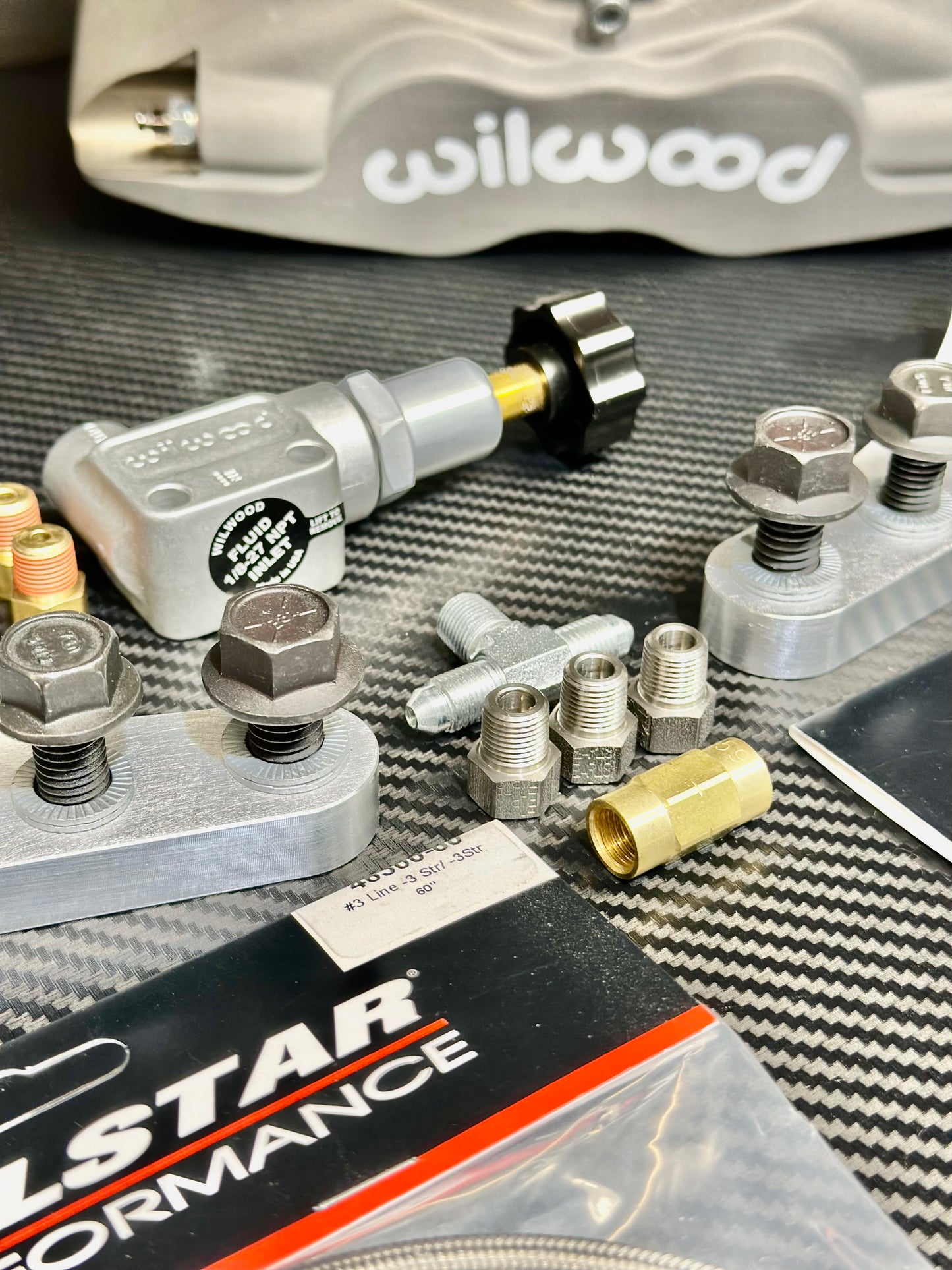

Mounting Brackets:
Precision-machined for perfect fitment with Wilwood Superlite calipers 120-11125.
Mounting hardware and 8 nordlock washers
Optional Add-Ons:
Rotor Rings and Hardware: Standard size wilwood (11.75” x 0.81”)
Brake Lines and Fittings: All the plumbing components needed.
Brake Bias Adjuster & bracket: Mounts to the rear subframe and provides precise control of rear bias ratios.
Wheel Fitment Notes
This kit requires 15x9" or larger wheels. Confirmed fitment includes:
Konig Hexagon (15x10)
Konig Freeform (15x9.5)
Sparco (15x9)
Jongbloed (15x10)
Other wheels may fit but should be tested for clearance.
