Uprights for Nine Lives Racing Wing on NA/NB Mazda Miata
Enhance the aerodynamic performance of your Mazda Miata with our high-performance uprights, designed to perfectly relocate your Nine Lives Racing Wing. Specifically engineered for NA and NB Miatas, these uprights provide improved downforce potential and more consistent airflow, making them ideal for both street and endurance racing applications.
Key Features:
-
Optimized Wing Positioning: These uprights relocate the wing just behind the rear axle, shifting the aerodynamic balance forward. This adjustment significantly increases total downforce potential on most Miatas by de-levering rearward aero bias.
-
Improved Free-Air Flow: By positioning the wing higher into free-air flow, these uprights maintain a more consistent air direction across the airfoil. This allows for a larger angle of attack (AOA) before stall, maximizing downforce while minimizing drag.
-

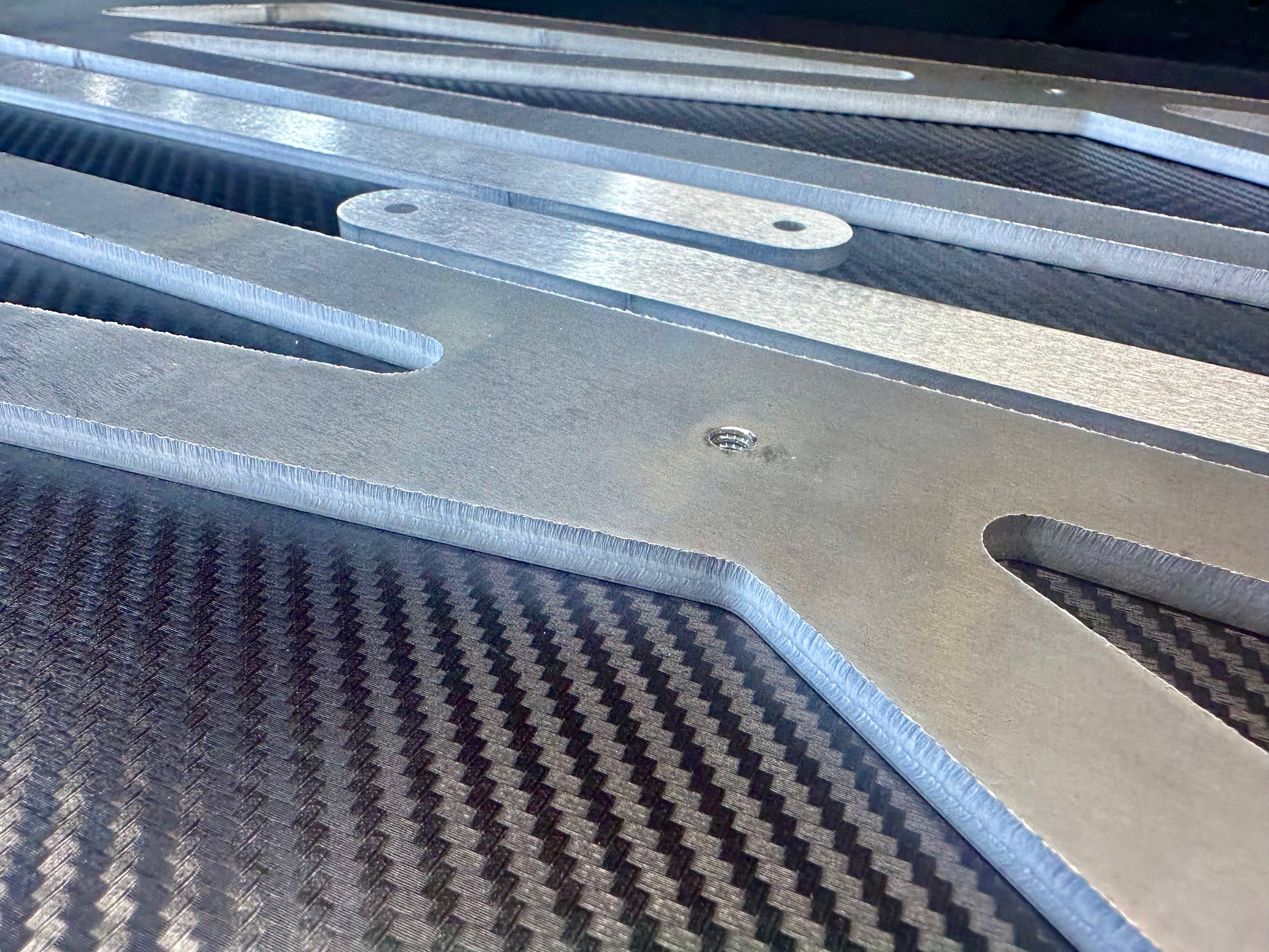

Durable, Lightweight Construction: Constructed from 0.250" 7075-T6 aluminum, these struts are 33% thinner than the standard Nine Lives Racing supports, yet offer the same strength thanks to the 50% stronger material. This combination ensures both durability and performance without added weight.
-
Stabilizer Recommendations: While these uprights can be mounted without stabilizers, we recommend using the included stabilizer to prevent fatigue over time, ensuring long-term reliability.
-

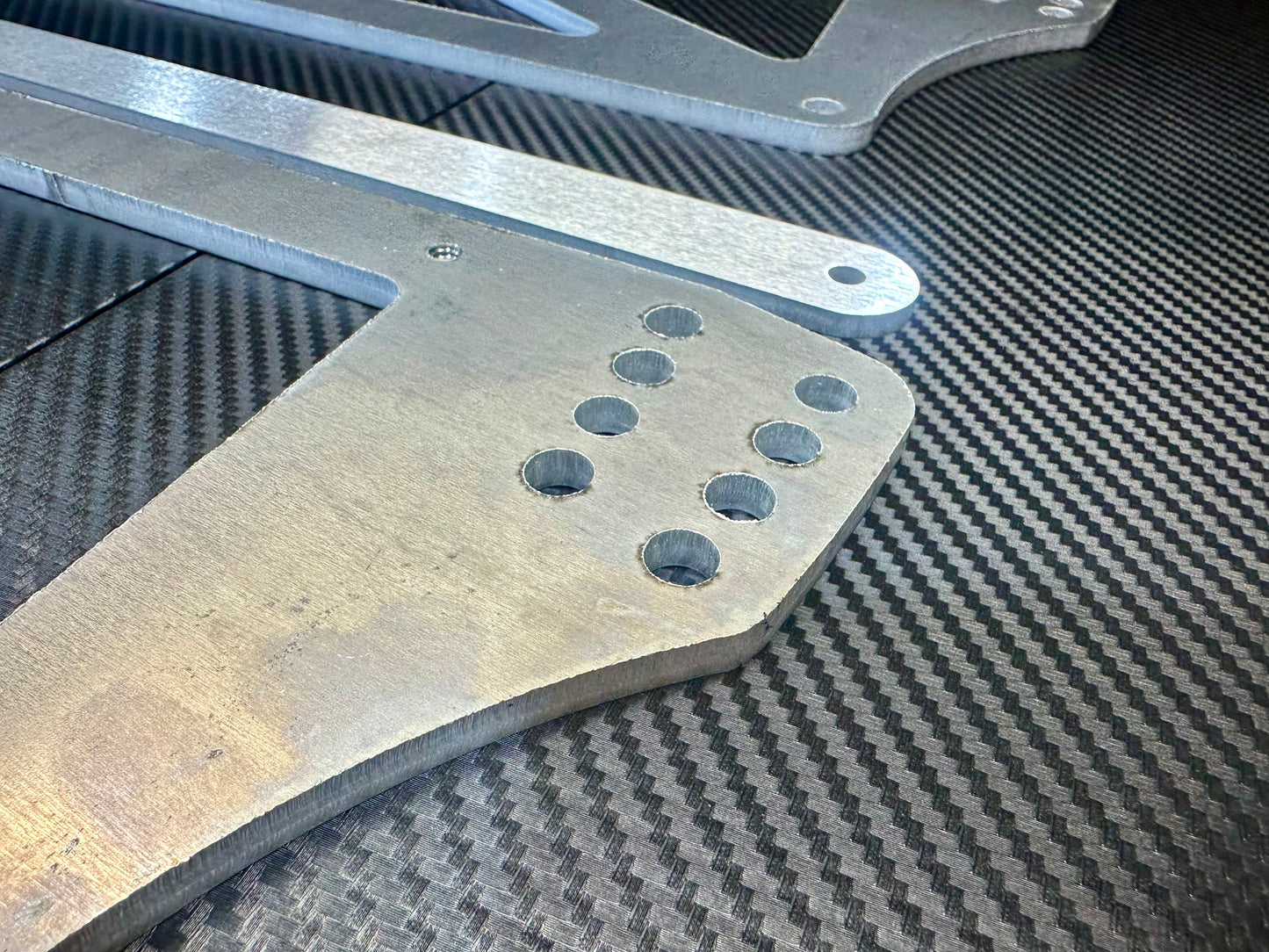

Direct Fit and Installation: These uprights bolt directly to the Nine Lives Racing mounting locations with minimal modifications required. (Some additional trimming of the trunk lid may be necessary for a perfect fit.)
-

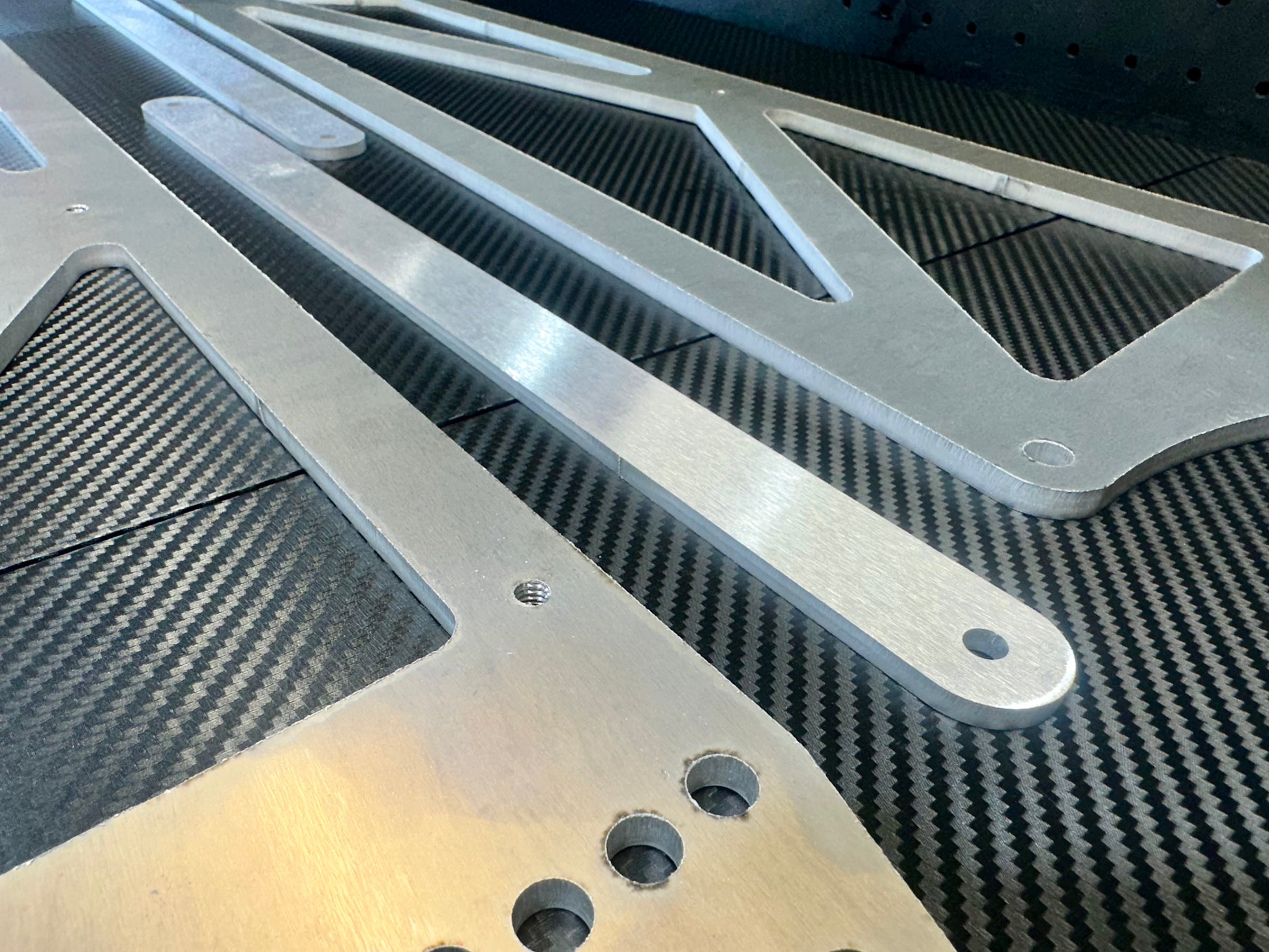

Optional Stability Support: For extra stability, especially in high-performance applications, cable-supports can be added by tying to the hardtop mounting locations using the 1/4-20 threaded holes on top of each upright. (Note: Cable-based cross supports are not included.)
Why Choose Our Uprights for the Nine Lives Racing Wing?
- Increased Downforce Potential: By relocating the wing just behind the rear axle, these uprights shift the downforce balance, boosting total downforce potential.
- Optimized Airflow: The elevated wing position ensures more consistent airflow, allowing for a larger angle of attack before stall and reducing drag.
- Easy Installation: Designed for a direct bolt-on fit to Nine Lives Racing wing mounts, with minimal modifications required.
Product Specifications:
- Material: 0.250" 7075-T6 Aluminum
- Compatibility: NA and NB Mazda Miata with Nine Lives Racing Wing
- Finish: Raw
- Installation: Bolt-on, with some trimming of trunk lid required
- Stabilizers: Included, recommended for endurance and street use
Package Includes:

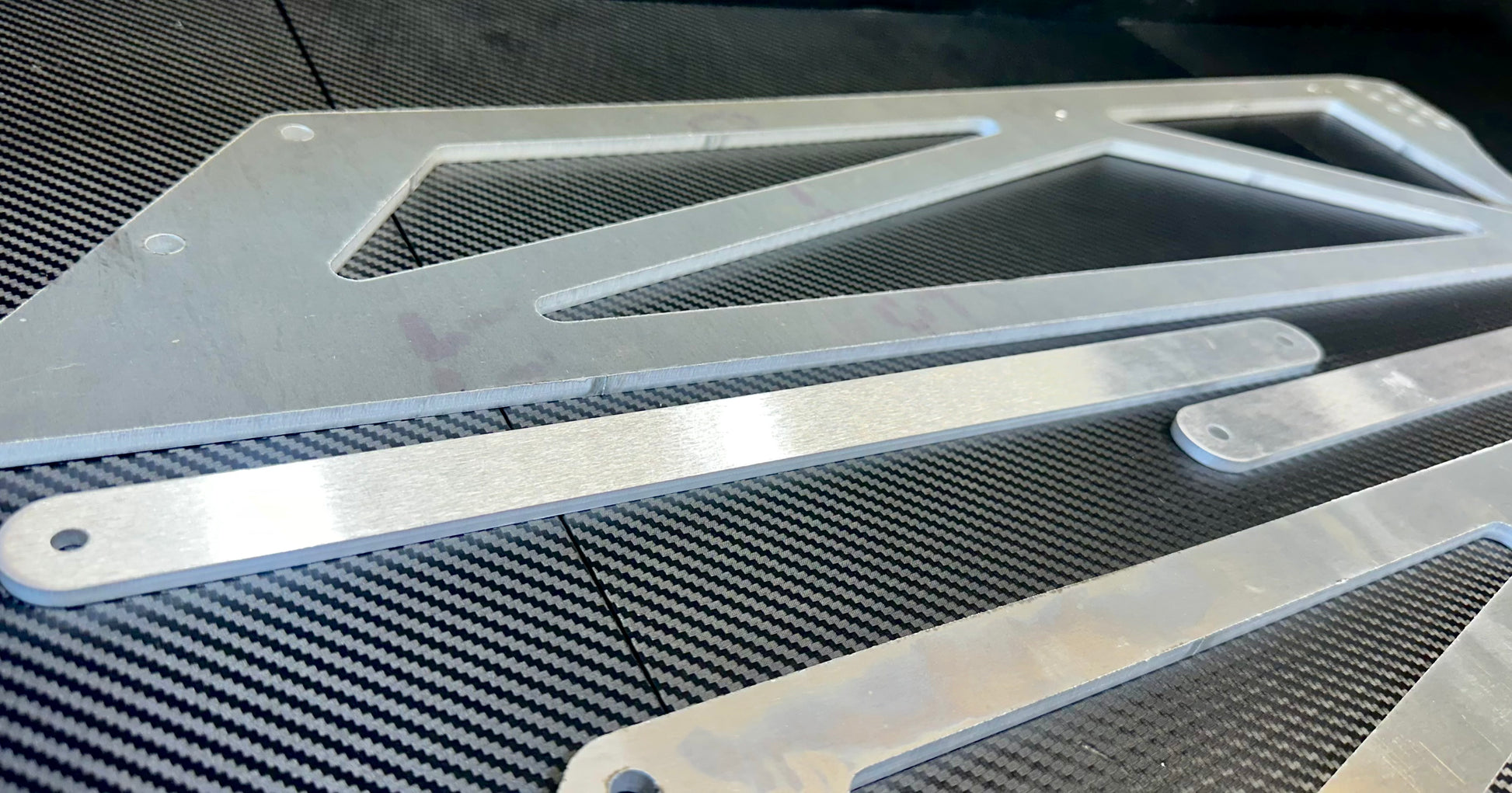

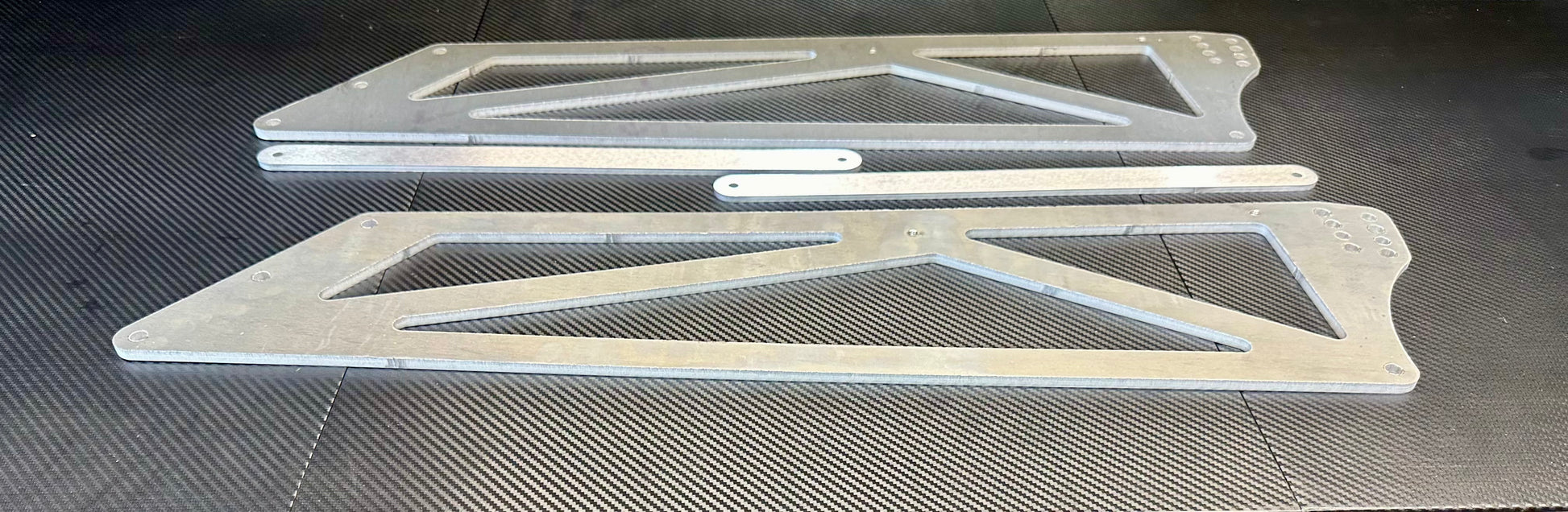

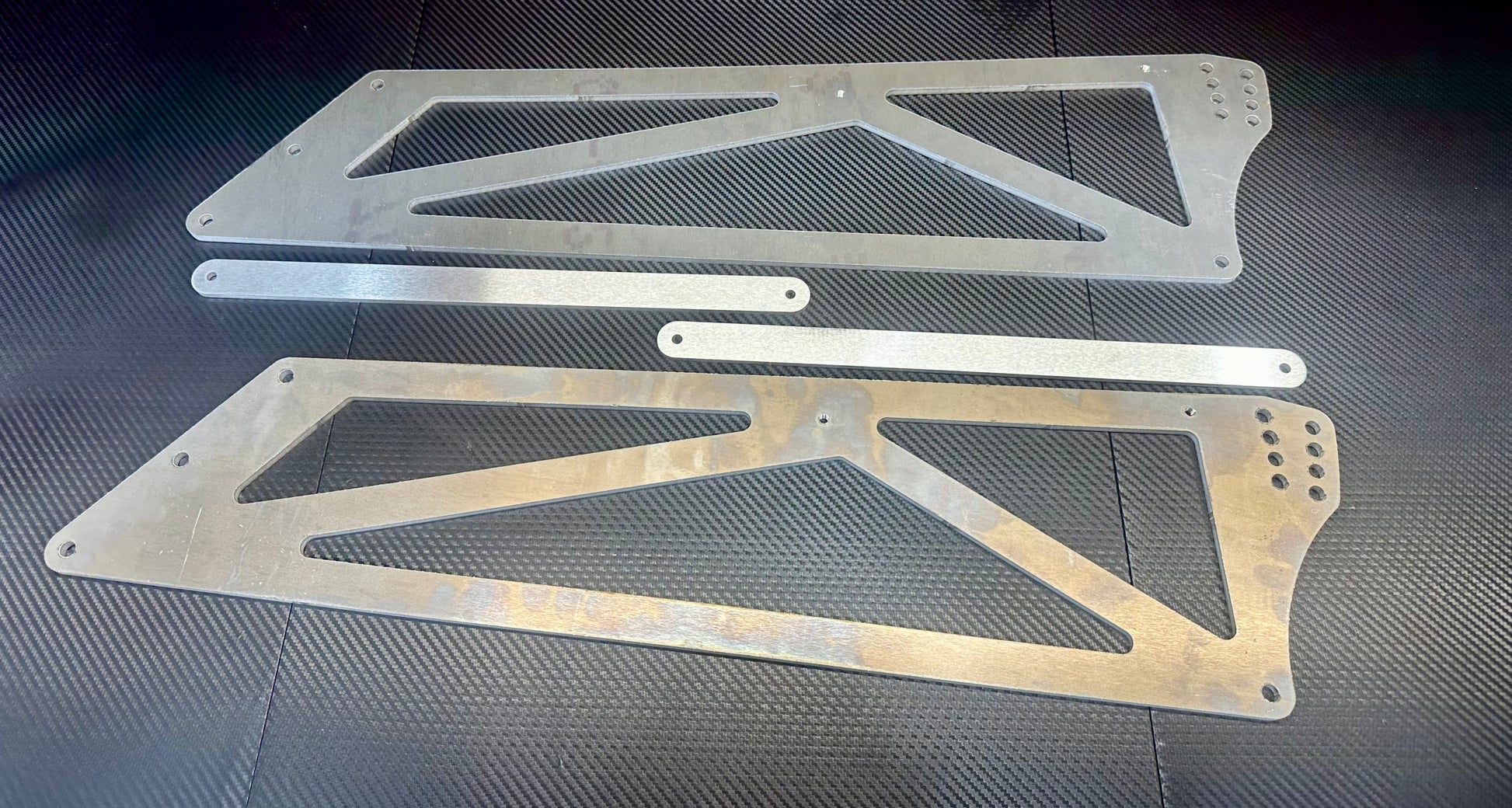

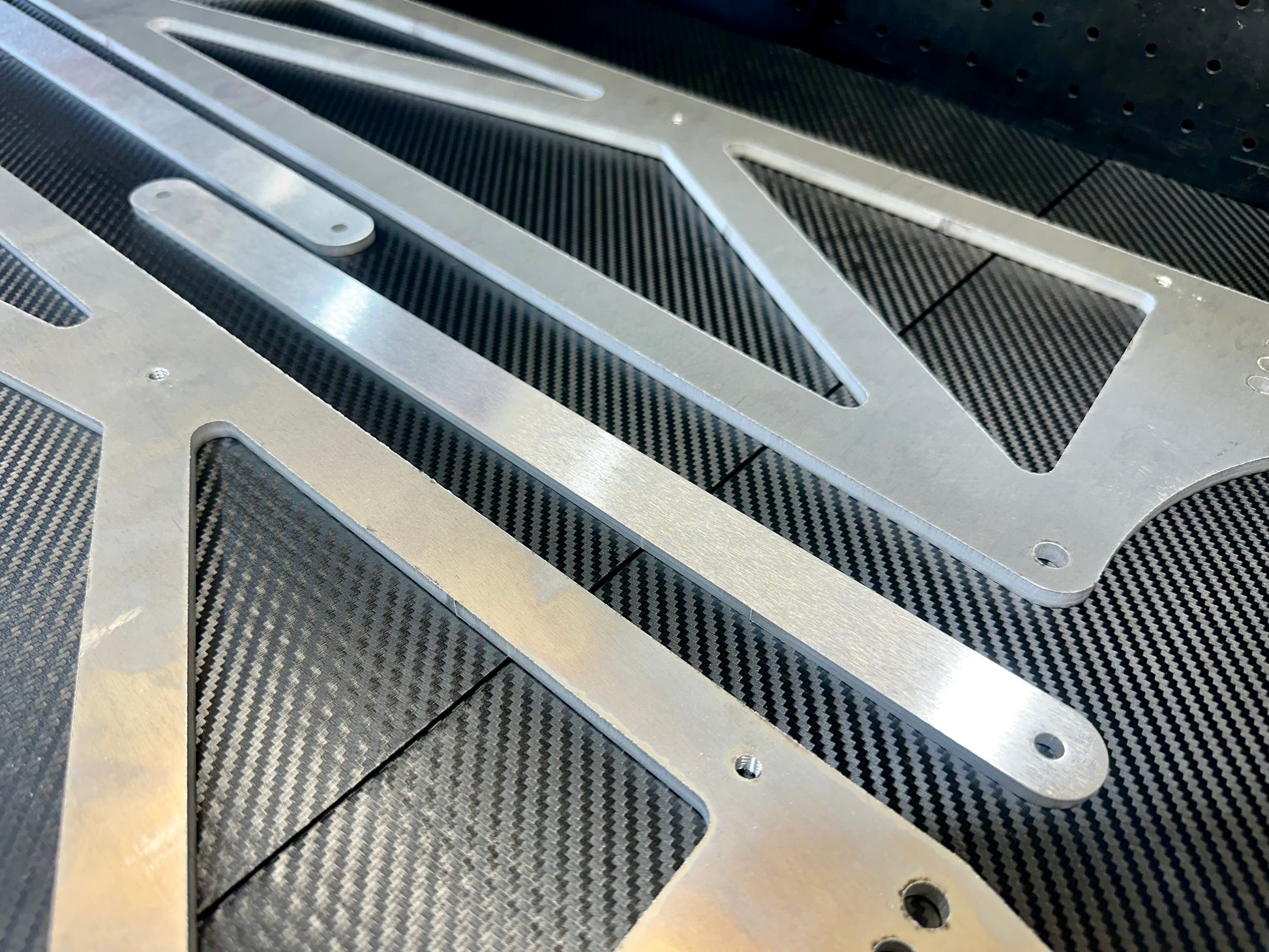

- 2 x Aluminum Uprights for Nine Lives Racing Wing
- 2 x Stabilizer bars
- Mounting Hardware
- Installation Instructions
